| Quotation for Semi-automatic Mask Ear-loop Welding Machine （For 3ply flat face mask） | | | Price:
| No. |
Name |
Unit Price
(FOB Shanghai) |
| 1 |

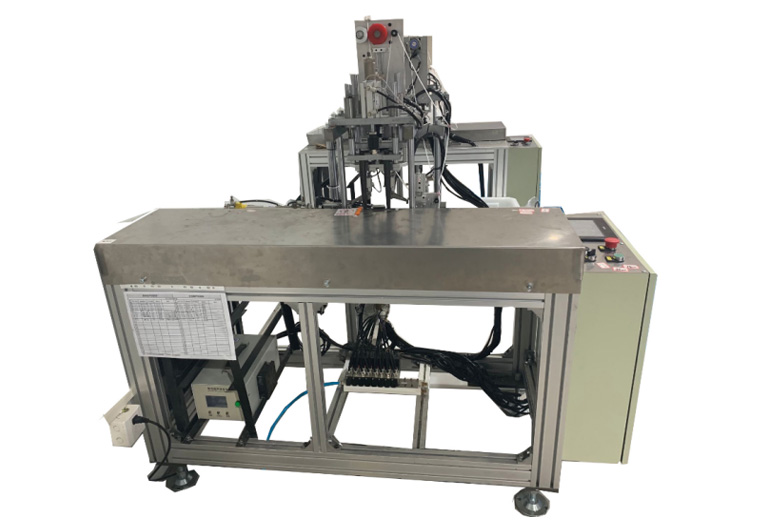

Semi-automatic Mask Ear-loop Welding Machine (For 3ply flat face mask) |
USD9850.00/set (The price including magnetic inpsection charges when in China airport) |
Product Introduction:
The equipment is manually placed into the positioning mold, the foot pedal switch is started, the rotating disk is turned to the ultrasonic ear loop welding place, the equipment starts to cut the ear loop at a fixed length, the air cylinder clamps the ear loop and sends it to the ultrasonic vibrator, presses down the welding, after the welding, the rotation continues to weld the other side, after the binding, the air cylinder lifts up to replace the new material and restarts.
The size of equipment ear loop is adjustable, the rotation angle of welding ear loop is adjustable, and the spacing of ear loop is adjustable.
The equipment is equipped with ear loop detection function, and automatically stops after ear loop failure.
Main Parameters:
| 序號No. |
名稱Name |
參數Parameters |
| 1 |
工作電源 Power supply |
220VAC，50HZ |
| 2 |
工作功率 Working Power |
1.5KW |
| 3 |
工作氣壓 Working air pressure |
壓力Pressure：0.6Mpa ,流量Flow rate：200L/min |
| 4 |
產能 Production Capacity |
20-25片/分（終效率取決于人工放料速度） 20-25 pieces /Min （ Final efficiency depends on manual feeding speed ） |
| 5 |
操機配置 Operating Worker |
1人 1 person |
| 6 |
機器尺寸Overall Dimension |
1470x600x1540mm |
| 7 |
機器重量Machine Weight |
200kg |
Packing（Wooden case package，each set one wooden case）：
Wooden Case Size （per set machine）:
1520 x 650x950mm
