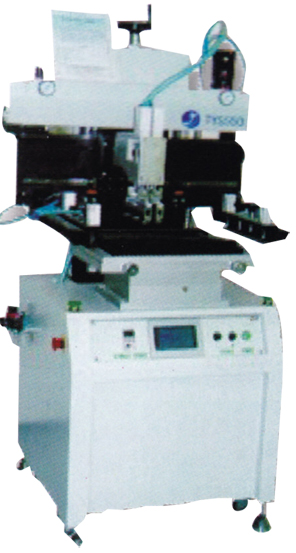

Main Feature
1.Using microcomputer control, LCD monitor, menu operation interface,
2.Floating scraper（Like automatic printer, scraper can float up and down freely and adjust the position with steel mesh.）
3.Scraper pressure adjustable
4.There be segmental action when steel mesh leave out of PCB, with 0-5 seconds adjustable.( Like automatic printer , steel mesh demould slowly within 2 seconds, than rise and leave PCB quickly which avoid occurring wire-drawing.Safe time and improve productive efficiency.)
5.Press key by two hands for safe
6.There is time display, automatic counting of printing times, screen save function in the menu
7.PCB can be fixed by basic hole , reference edge and so on.
8.Have emergency stop and scraper speed adjustable function.
Technical parameters
1.Circuit board size: 300×300mm
2.Circuit board thickness: 0.2-2.0mm
3.Printing table fine-tuning: x-axis ±10mm, y-axis ±10mm
4.Printing Accuracy: ±0.05mm
5.Duplicate orientation precision: ±0.02mm
6.Minimum spacing of printing: 0.35mm
7.Power supply: 220V 100W
8.Air Supply: 0.4-0.6Mpa
9.Volume （1×w×h）:900×900×1650mm
10.Weight: 250kg
|
